- NPO-Embedded FAU

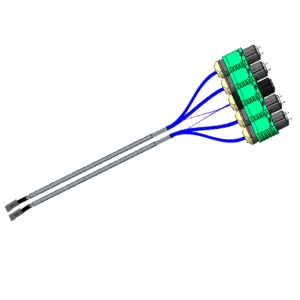

- GROWSFIBER's Fiber Array Unit (FAU) solutions provide high-density fiber coupling and optical integration for next-generation AI and data center networks. The portfolio includes NPO-Embedded FAU and FAU for ELS Light Source, supporting flexible optical integration across NPO and external light source architectures. Designed for next-generation NPO architectures, the NPO-Embedded FAU provides high-density fiber coupling with low insertion loss and excellent channel uniformity. It supports multi-channel optical interconnects for 1.6T, 3.2T, and 6.4T architectures.
-
Contact Us
- Channel Configuration: 36 channels (32× SM + 4× PM)
- Architecture Compatibility: 16×100G/200G, total bandwidth 1.6/3.2/6.4T
- Insertion Loss (IL): ≤ 0.7 dB/channel (typical: 0.35 dB)
- Return Loss (RL): ≥ 40 dB (APC endface)
- Channel Uniformity: ≤ 0.5 dB
- Fiber Core Pitch: 127 μm / 84 μm
- Operating Temperature: 0°C to +85°C
- AI Data Center NPO (Near-Packaged Optics) Optical Engine
- 1.6T / 3.2T / 6.4T High-Speed Parallel Optical Interconnect
- CPO Applications
Features
Application
Specification
Data Download
