- FAU for ELS Light Source

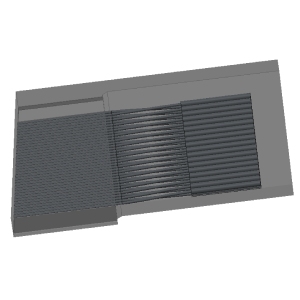

- GROWSFIBER's Fiber Array Unit (FAU) solutions provide high-density fiber coupling and optical integration for next-generation AI and data center networks. The portfolio includes NPO-Embedded FAU and FAU for ELS Light Source, supporting flexible optical integration across NPO and external light source architectures. Designed for external laser source (ELS) applications, this FAU provides high-precision polarization-maintaining fiber coupling with low insertion loss and high polarization extinction ratio. The blind-mate-compatible interface enables reliable integration into high-density optical interconnect architectures.
-
Contact Us
- Fiber Type: PM Fiber (Polarization-Maintaining Fiber)
- Polarization Extinction Ratio (PER): ≥ 20 dB
- Insertion Loss (IL): ≤ 0.5 dB/channel
- Return Loss (RL): ≥ 40 dB
- Fiber Core Position Accuracy: ±0.5 μm
- Connector Type: MT/MPO PM-compatible, blind-mate capable
- Operating Temperature: 0°C to +85°C
- ELS External Light Source Architecture
- Silicon Photonic Coherent Engine
- PM Optical Coupling, FAU Application Scenarios
