GROWSFIBER Announces the Mass Production of Industrial-Grade Blade 5G OMUX for 5G Fronthaul

2020-11-30

Shenzhen, China, November 30, 2020 − GROWSFIBER, a global leading supplier of high-quality passive optics and WDM subsystems, today announced the mass production of industrial-grade blade 5G OMUX. The products have excellent characteristics such as low insertion loss and low center wavelength deviation. The reliability is fully suitable for 5G fronthaul optical networks.

In response to 5G fronthaul requirements, China Telecom has additionally proposed an LWDM transmission solution, and China Mobile has introduced an Open-WDM transmission solution, including MWDM and CWDM, in addition to the CWDM solutions already launched by the three major operators.

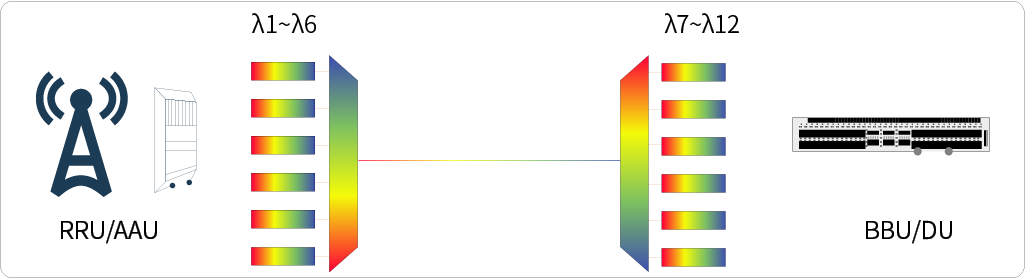

5G fronthaul WDM

Based on the operator’s CWDM/MWDM/LWDM solution, GROWSFIBER’s industrial-grade blade 5G OMUX portfolio can meet the requirements of 5G fronthaul, including -40℃ to +85℃ industrial temperature, 100*130*25mm size, and is compliant with the Q/CT 2295-2010 standard. It has ultra-low insertion loss (transmission insertion loss and reflection insertion loss) and low center wavelength deviation in the full temperature range. Based on the harsh application environment of 5G fronthaul, the credibility of GROWSFIBER products can meet the requirements of operators.

In addition, the blade module products are easy to install and can be used independently, and can also be used with chassis and outdoor pole-mounted chassis. The following complete CWDM/MWDM/LWDM solutions can be provided by GROWSFIBER.

Picture P/N Description
6CH CWDM Mux/DeMux GF5GC6R 5G OMUX CWDM6 RT, 1271nm~1371nm, -40℃ to +85℃
GF5GC6C 5G OMUX CWDM6 COT, 1271nm~1371nm, -40℃ to +85℃
GF5GM6R 5G OMUX MWDM6 RT, 1267.5nm~1314.5nm, -40℃ to +85℃
GF5GM6C 5G OMUX MWDM6 COT, 1267.5nm~1314.5nm, -40℃ to +85℃
GF5GL6R 5G OMUX LWDM6 RT, 1286.66nm~1309.14nm, -40℃ to +85℃
GF5GL6C 5G OMUX LWDM6 COT, 1286.66nm~1309.14nm, -40℃ to +85℃
12CH CWDM Mux/DeMux GF5GC12R 5G OMUX CWDM12 RT, 1271nm~1371nm &1471nm~1571nm, -40℃ to +85℃
GF5GC12C 5G OMUX CWDM12 COT, 1271nm~1371nm &1471nm~1571nm, -40℃ to +85℃
GF5GM12R 5G OMUX MWDM12 RT, 1267.5nm~1374.5nm, -40℃ to +85℃
GF5GM12C 5G OMUX MWDM12 COT, 1267.5nm~1374.5nm, -40℃ to +85℃
GF5GL12R 5G OMUX LWDM12 RT, 1269.23nm~1318.35nm, -40℃ to +85℃
GF5GL12C 5G OMUX LWDM12 COT, 1269.23nm~1318.35nm, -40℃ to +85℃

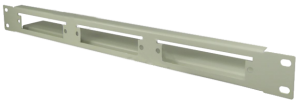

1U high, 19″ rack, 3 slots, DU side
3U 3U high, 19″ rack, 16 slots, DU side
Outdoor pole-mounted chassis, 2 slots, AAU side

GROWSFIBER’s WDM product line has automated auxiliary production lines and advanced equipment to help 5G fronthaul, and can provide customers with a full range of solutions for CWDM, MWDM, LWDM, and DWDM modules. For more information, please contact [email protected]

About GROWSFIBER

GROWSFIBER is committed to the design, development, packaging and manufacturing of optical passive wavelength division devices and mechanical optical switches based on free space optical technology platforms and high-density optical connectors based on micro-assembly technology platforms. The company’s main products are divided into five major series: wavelength division multiplexing series, optical switch series, high-density optical connection series, optical splitter series and micro-optical device series.
