MPO/MTP High-Density Cabling Solution

GROWSFIBER provides MPO/MTP high-density cabling solution for data center customers. The complete solution is consist of a wide range of patch cables, trunk cables, harness cables, hydra cables, plug-in cassettes, patch panels, loopbacks and polarity checkers.

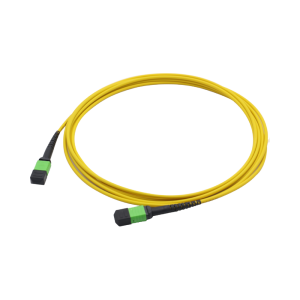

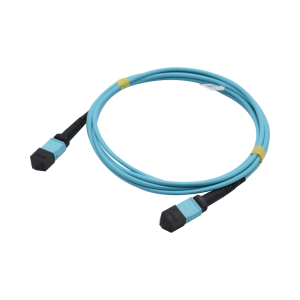

GROWSFIBER’S MPO/MTP patch cables are widely used in data centers to connect optical transceiver modules with MTP/MPO optical interfaces, including 40G QSFP+ SR4, 40G QSFP+ PSM4, 120G CXP SR10/SR12, 100G QSFP28 SR4, 100G QSFP28 PSM4, 200G QSFP56 SR4, 200G QSFP56 DR4, 200G QSFP-DD SR8, 200G QSFP-DD PSM8, 400G QSFP-DD SR8, 400G QSFP-DD DR4, and so on.

Among them, the SR4/SR8/SR10/SR12 modules are connected with 8-, 16-, 20-, or 24-core MPO/MTP mulitmode (OM3/OM4) patch cables, while the DR4/PSM4/PSM8 modules are connected with 8- or 16-core MPO/MTP single mode patch cables.

GROWSFIBER’s MTP/MPO patch cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.

  • Polarity available in Type A, Type B, Type C, Type R
  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 8, 12, 24, 48
  • MTP/MPO connector type available in Male, Female, Male to Female
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
  • Cable jacket type available in OFNR, LSZH, OFNP
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Cable length available in 1 to 999 meters
  • Cable type available in round, ribbon
  • Improve and simplify fiber routing, decrease fiber management space

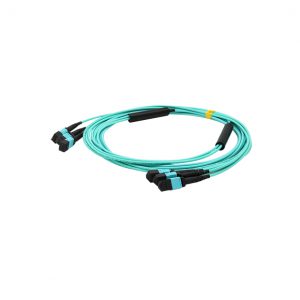

In data centers where optical fiber connections are very dense, MPO/MTP trunk cables are usually used to facilitate centralized management. The trunk cables are used in conjunction with MPO/MTP adapter panels — connected to multiple MPO/MTP patch cables.

Like the MPO/MTP patch cables, MPO/MTP trunk cables are also divided into single mode cables and multimode cables, of which, multimode cables are more widely used in practical applications. GROWSFIBER’s MPO/MTP trunk cables can be integrated with up to 12x 12-core cables or 24-core cables, that is, up to 144-core or 288-core optical fibers.

GROWSFIBER’s MPO trunk cables are fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.

  • Polarity available in Type A, Type B, Type C, Type R
  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 12, 24, 36, 48, …, 144
  • MTP/MPO connector type available in Male, Female, Male to Female
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
  • Cable jacket type available in OFNR, LSZH, OFNP
  • Furcation Length available in 0.5m, 1m, etc.
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Cable length available in 1 to 999 meters
  • Customized dual shelf reel and pulling eye keep connectivity protected during payout
  • Improve and simplify fiber routing, decrease fiber management space
  • Comply with Telcordia GR-1435-CORE, GR-326-CORE, RoHS

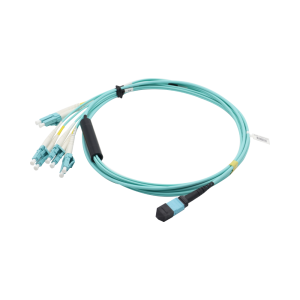

MPO/MTP harness cables are branch fan-out cables, also called breakout cables, are mainly used in scenarios where low bandwidth is needed to upgrade to high bandwidth. With the expansion of data centers, the basic bandwidth is upgraded from 10G to 40G, or from 25G to 100G, or even from 50G to 200G/400G. All such scenarios require the use of MPO/MTP harness cables to connect 4 or 8 low-speed optical transceiver modules and one high-speed optical transceiver module.

For example, four 25G SFP28 SR modules can be connected to one 100G QSFP28 SR4 module through an 8-fiber MTP/MPO to 4x duplex LC multimode harness cable. Similarly, four 25G SFP28 LR modules can be connected to one 100G QSFP28 PSM4 module through an 8-fiber MTP/MPO to 4x duplex LC single mode harness cable.

Since the internal connections of most data centers are relatively short, the multimode harness cables are more widely used in practical applications. In addition, nowadays data centers basically use LC as single-core optical fiber connectors, so the fan-out end is basically LC connectors. GROWSFIBER can provide OM3 and OM4 multimode MTP/MPO harness cables as well as single mode versions with 8-, 12-, or 24-core, in order to meet various conventional and special needs of customers.

GROWSFIBER’s MPO/MTP harness cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.

  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 8, 12, and 24
  • MTP/MPO connector type available in Male and Female
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
  • Cable jacket type available in OFNR, LSZH, OFNP
  • Fanout length available in 0.5m, 1m, etc.
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Single-fiber connector type available in LC, SC with APC or UPC polishing type
  • Overall cable length available in 1 to 999 meters
  • Factory terminated & tested with guaranteed quality
  • High density to dramatically save space
  • Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS

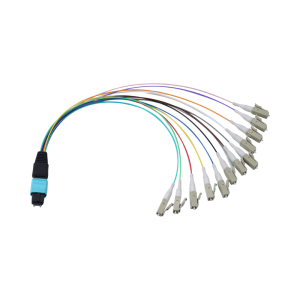

MPO/MTP hydra cables are direct fan-out cables. The application scenarios are similar to that of harness cables, except that they are usually used in MPO/MTP plug-in cassettes. GROWSFIBER’s MPO/MTP hydra cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.

  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 8, 12, and 24
  • MTP/MPO connector type available in Male and Female
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
  • Cable jacket type available in OFNR, LSZH, OFNP
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Single-fiber connector type available in LC, SC with APC or UPC polishing type
  • Cable length available in 1 to 999 meters
  • Improve and simplify fiber routing, decrease fiber management space
  • Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS

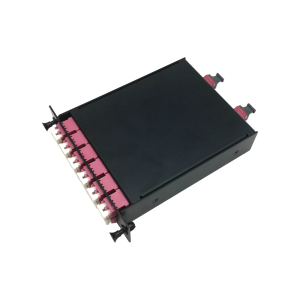

GROWSFIBER’s MPO/MTP plug-in cassettes are used for multi-fiber (MPO/MTP) to single-fiber (LC/SC) splitting out interconnects or for MPO/MTP transition applications. They are fully configurable, available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.

  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 8, 12, and 24
  • MTP/MPO connector type available in Male and Female
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
  • Cable jacket type available in OFNR, LSZH, OFNP
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Single-fiber connector type available in LC, SC with APC or UPC polishing type
  • Improve and simplify fiber routing, decrease fiber management space
  • Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS

MPO/MTP Patch Panels

GROWSFIBER’s MPO/MTP patch panels are designed as standard 19-inch racks to hold MPO/MTP plug-in cassettes for network space optimization and fast deployments. 3 slots, 4 slots, or 12 slots are available in the front of rack, and each slot can be used to accommodate MPO/MTP transition cassettes. With highly integrated design and manufacturing capability, GROWSFIBER provides customized MPO/MTP patch panels to deliver optimal performance and reliability.

  • Package type available in 1U Rack, 2U Rack, 3U Rack, 4U Rack, etc.
  • Slot count available in 3, 4, 12, etc.
  • Ultra high density and compact design, easy for installation
  • Can be configured with cassettes, adapter plates, or splice trays
  • Available in 144 fibers in 1U Rack for Ultra-High-Density cabling
  • Modular system management, easy reconfiguration for moves, adds and changes

MPO/MTP Loopback

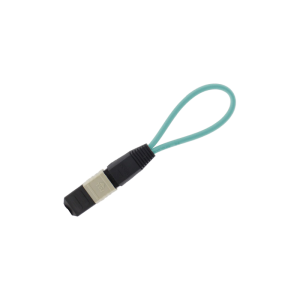

GROWSFIBER’s MPO/MTP loopback assemblies are designed for testing of MPO/MTP parallel links and for device burn-in. By creating a loop of signal from transceiver to receiver within one MPO/MTP plug it forms optical link which allows testing of optical network segment by segment. They provide an effective way of testing the transmission capability and receiver sensitivity of network equipment.

  • Fiber count available in 8, 12, and 24
  • MTP/MPO connector type available in MTP, MPO with APC or PC polishing type and with Male or Female type
  • Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
  • Cable jacket type available in OFNR, LSZH, OFNP
  • Comply with Telcordia GR-1435-CORE, GR-2866-CORE, GR-326-CORE, RoHS

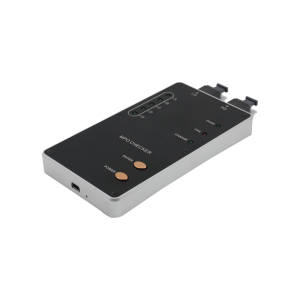

GROWSFIBER’s MPO/MTP checker is used to detect the polarity and connection status of multimode MPO/MTP cables, including 4, 8 and 12 cores. The maximum length of fiber can be detected is 450 meters. Its single detection time is less than 1 second in near checking mode and 4 seconds in far checking mode. It can work continuously over 20 hours without USB power supply. The checker displays the connection status of MPO/MTP cables by GUI.

  • Detect the polarity and connection status of MM MPO/MTP fiber optic patchcord
  • Default detected polarities are A, B, C and R
  • Study and remember the other polarity of MPO/MTP fiber optical patchcord
  • High reliability, low power consumption, continuous working time over 20 hours
  • Friendly simple GUI
  • Internal 1800mAh lithium battery
  • Mini-USB interface
  • Buzzer warning
  • Attachments: MPO attached cable, MPO adapter, Mini-USB cable, power adapter
  • Required system environment for GUI: Win XP 32bit and Win 7 32bit
